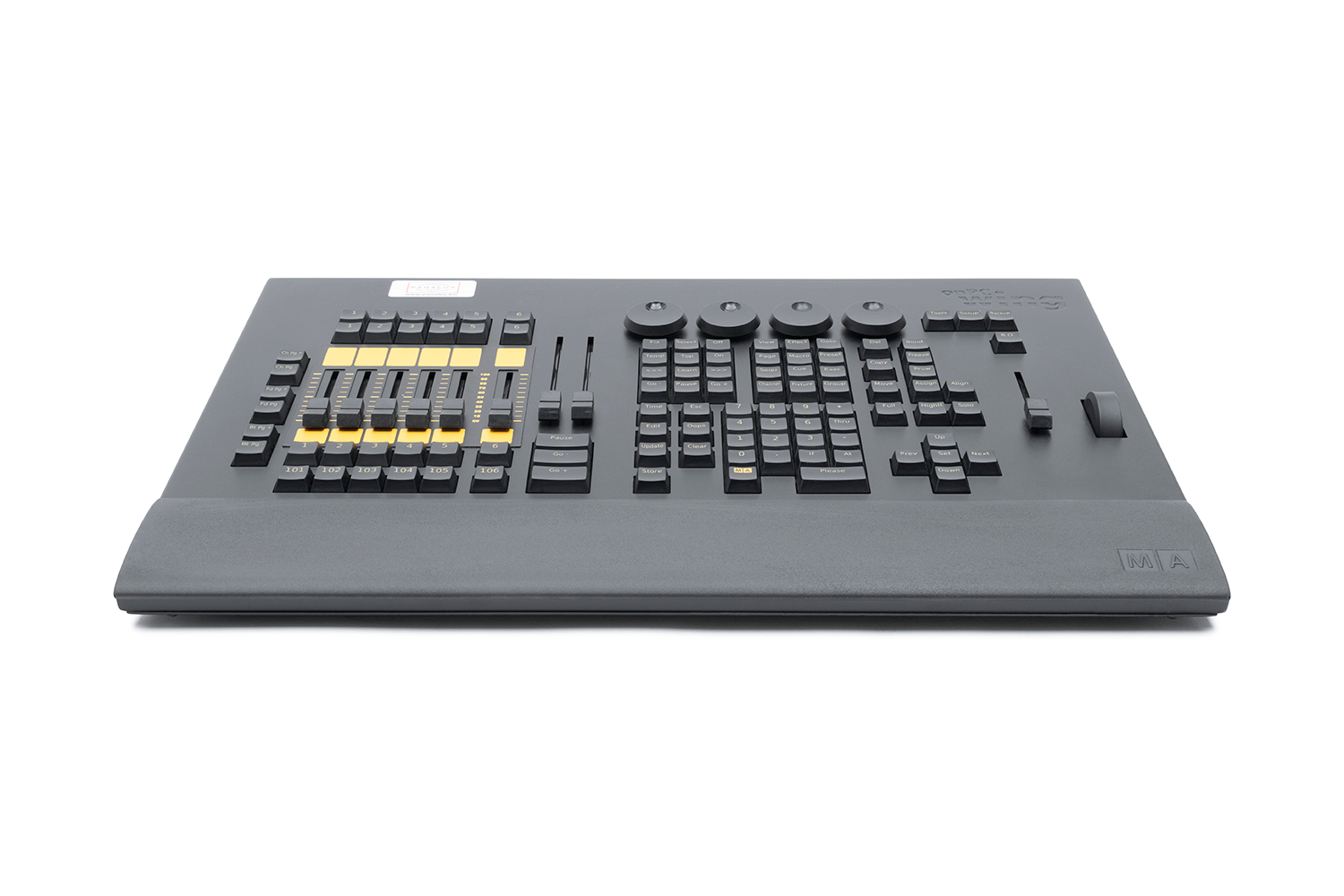

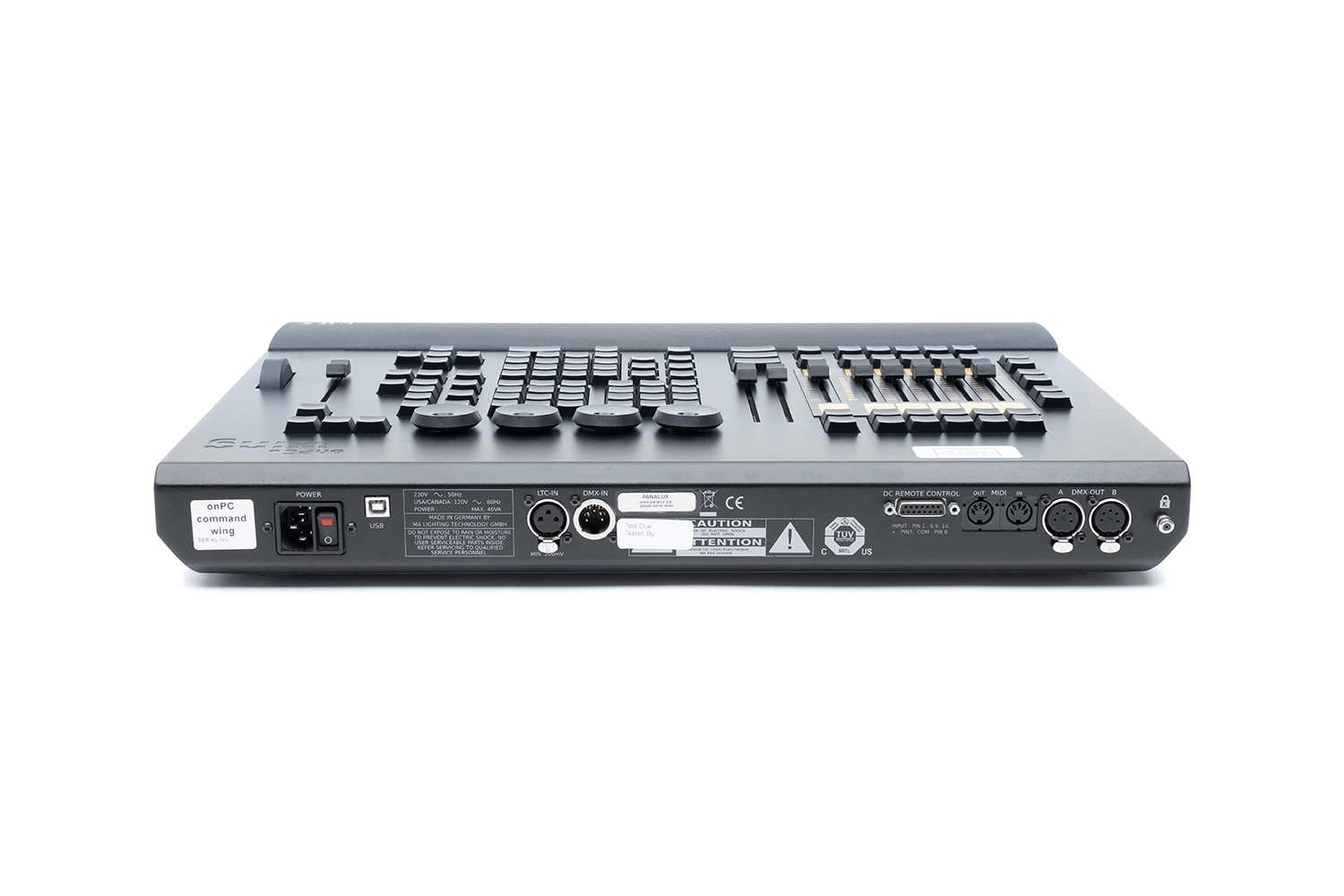

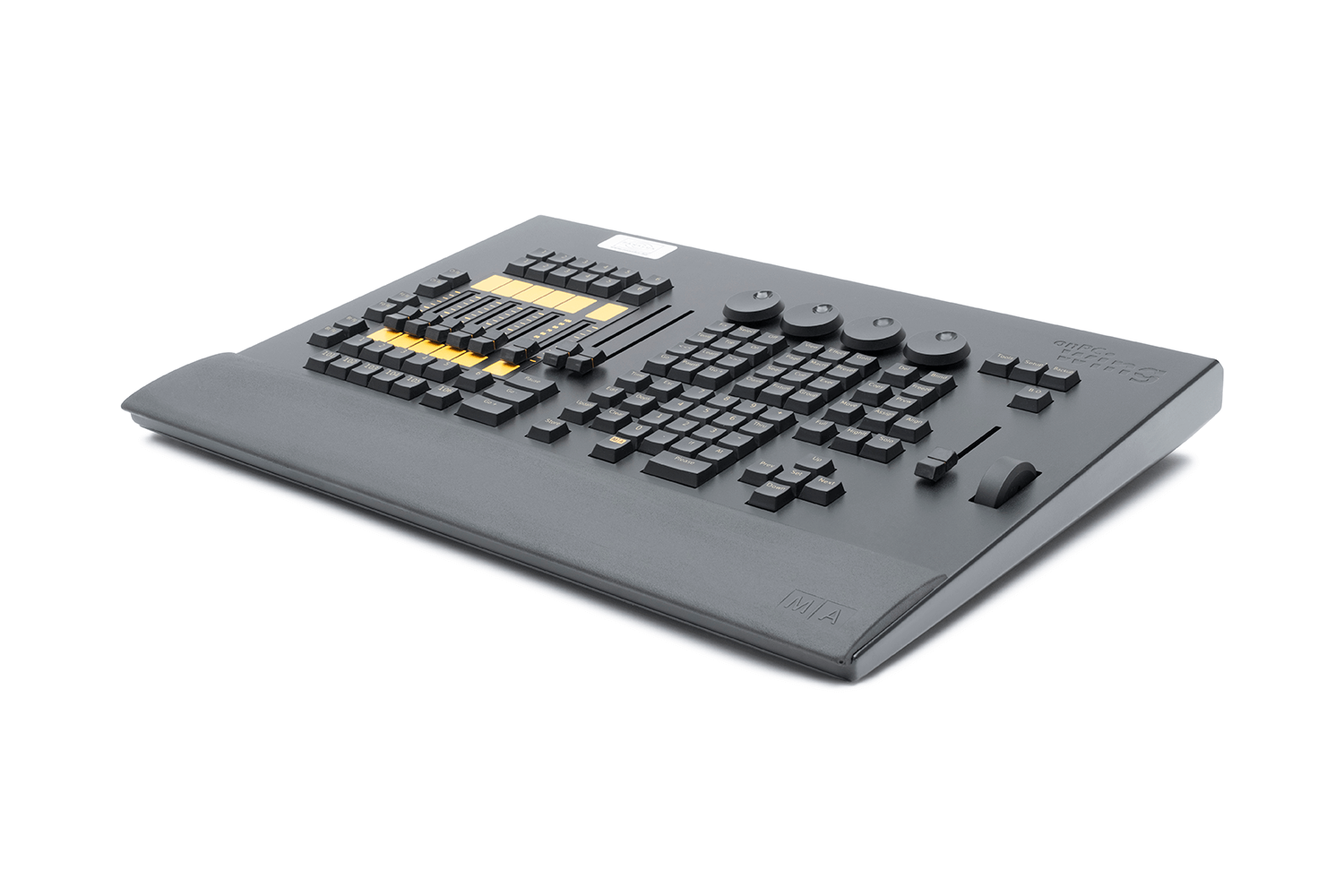

GrandMA OnPC Command Wing
MA LightingControl and Dimming
The MA onPC Command Wing incorporates the command section of the GrandMA2 console and connects via USB to a computer running GrandMA2 onPC software.
Product Details
| Manufacturer | MA Lighting |
|---|---|
| Model | GrandMA OnPC Command Wing |
| Dimensions (mm)(in) | 75 x 540 x 4002.95 x 21.26 x 15.75 |
| RDM | Yes |
| POE | No |
| Wireless DMX Module | No |
| Inputs | 1 x 5-Pin DMX In, 1 x 3-Pin XLR In, 1 x USB-A In, 1 x DIN In |
| Type | GrandMA |
| Outputs | 2 x 5-Pin DMX Out, 1 x DIN Out |
| Power Draw (W) | 40 |
| Supply Connector | 1 x IEC In |
| Panalux SKU | NJGIOA3 |
| Part Number | 120120 |
| Weight (kg)(lbs) | 6.00 13.23 |
