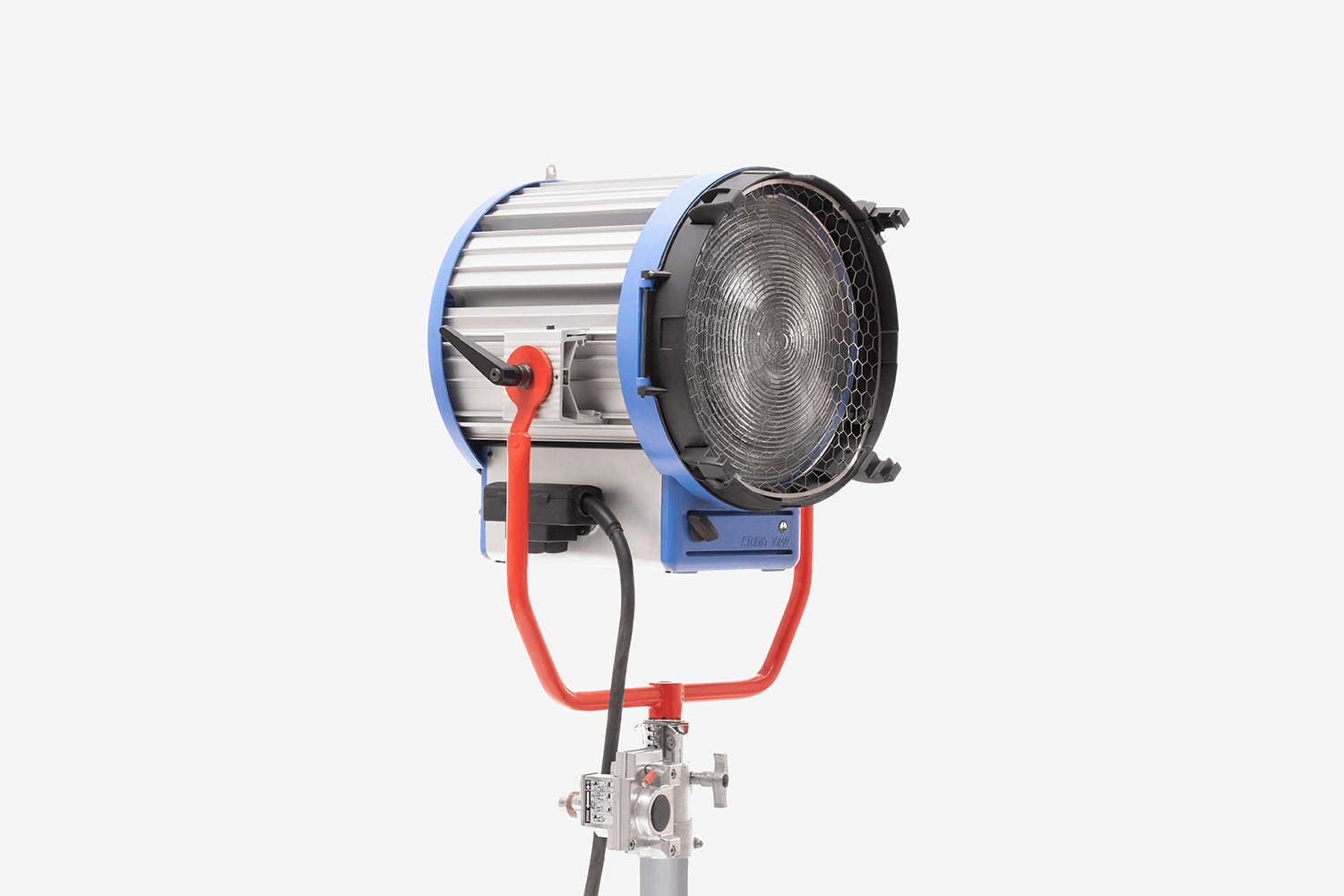

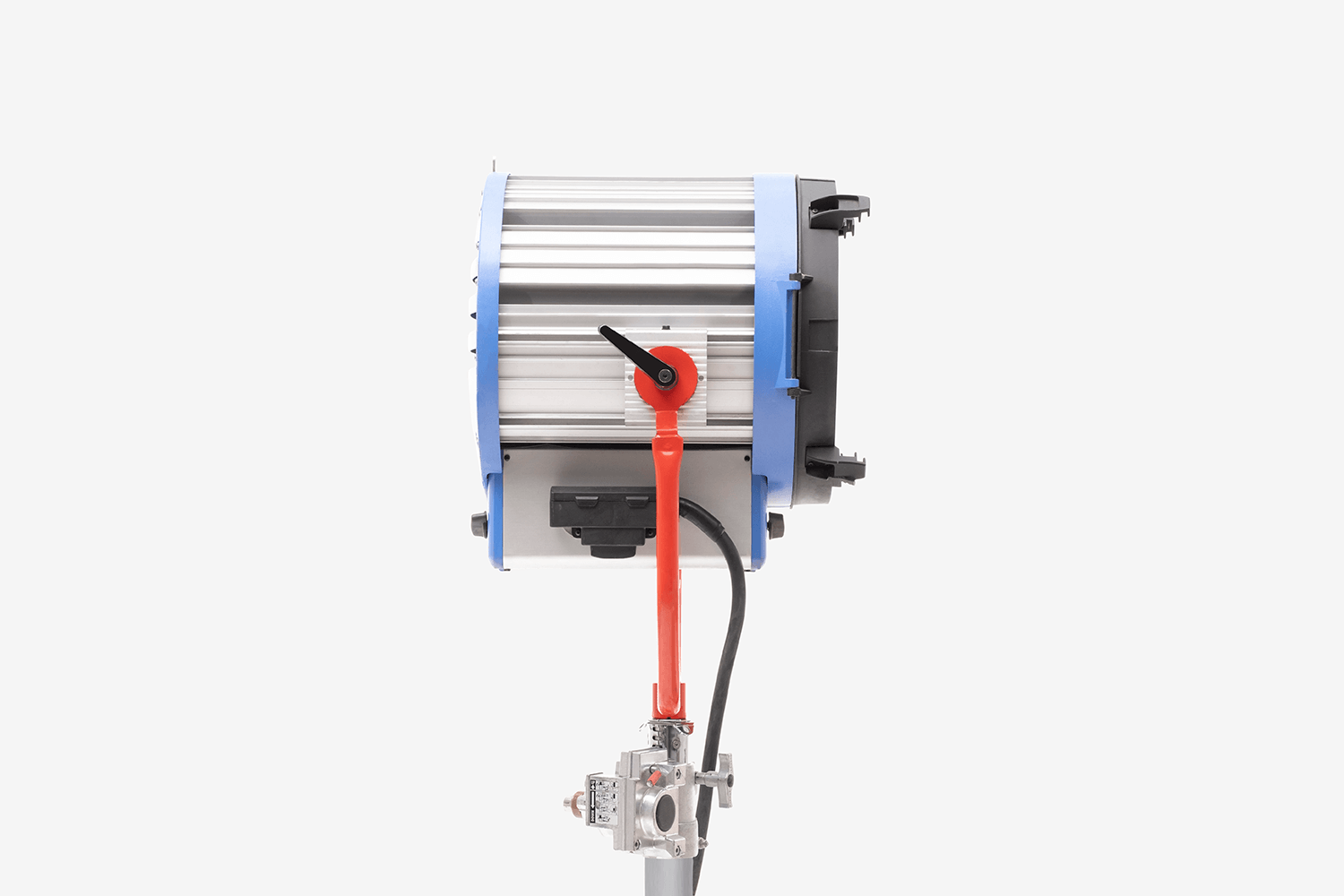

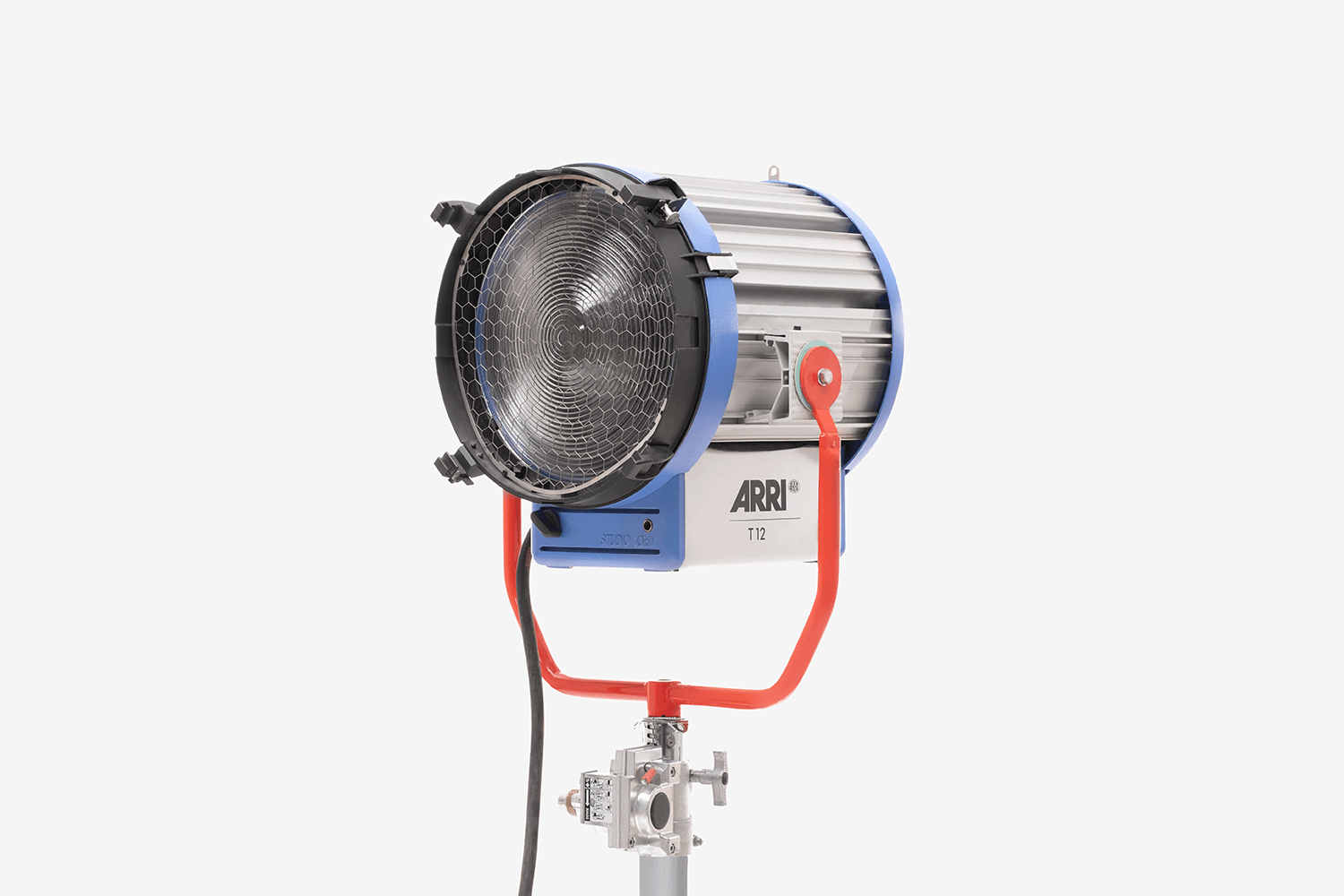

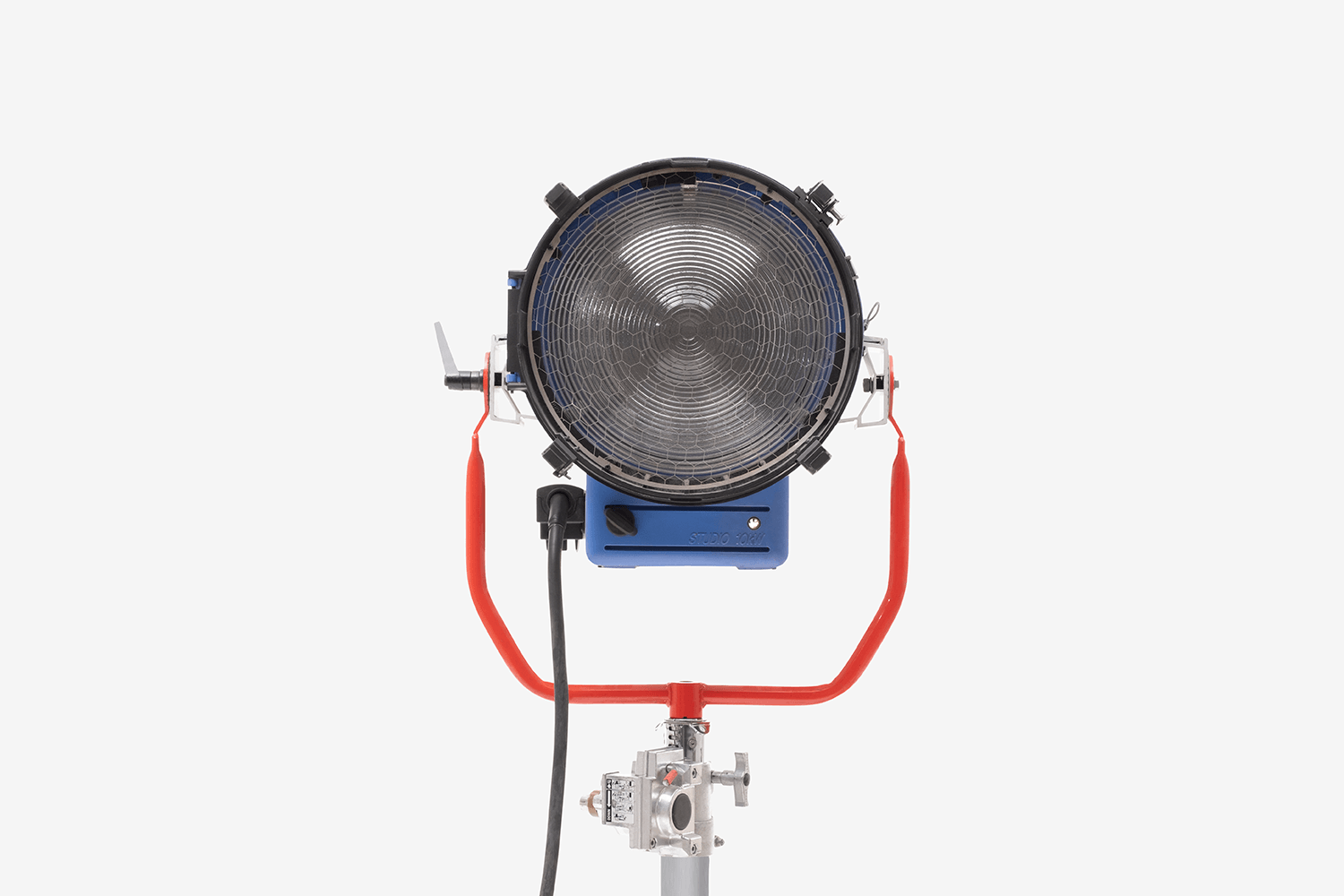

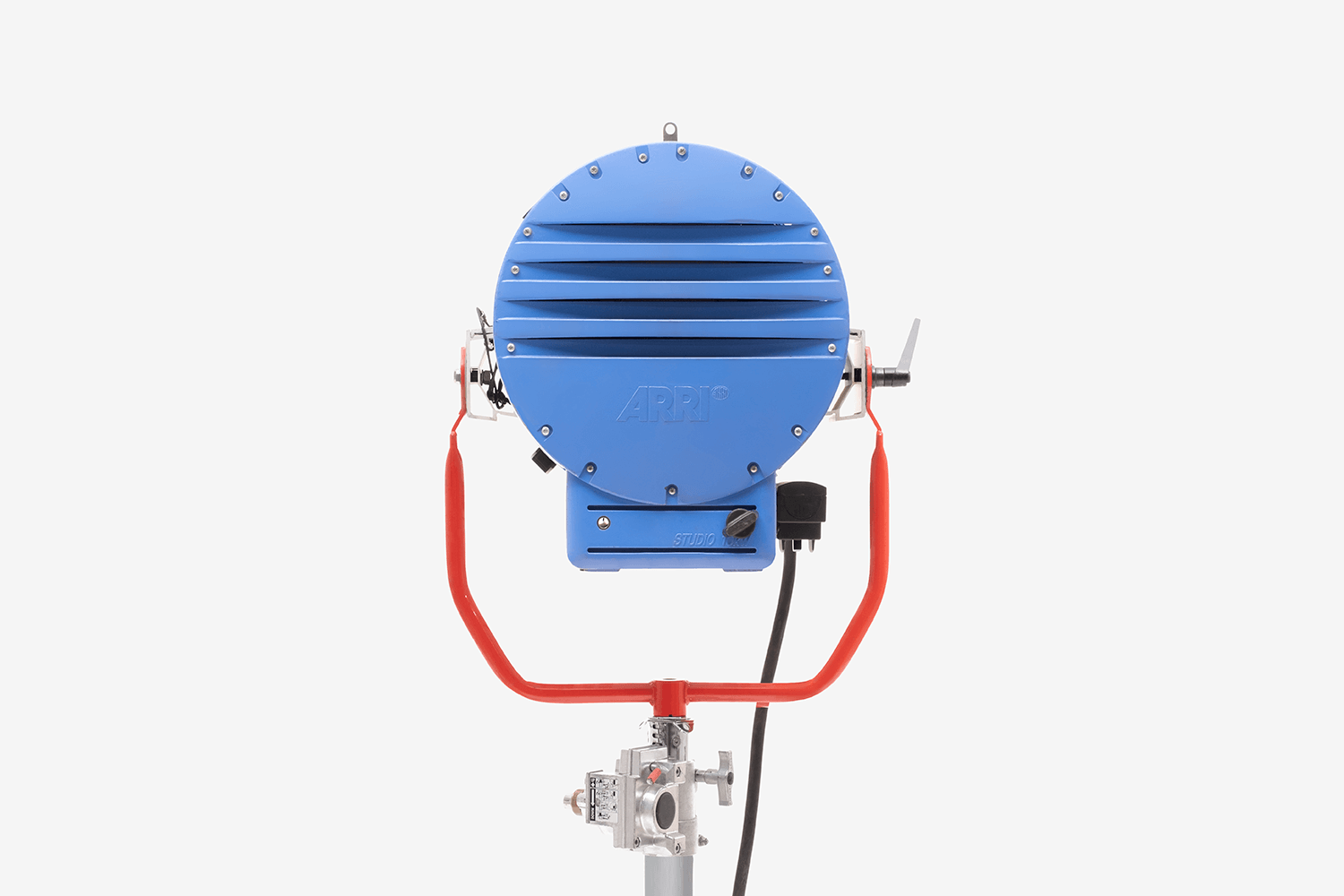

10/12kW Tungsten T12 Fresnel
ARRIHeads
Arri’s T12 tungsten Fresnel head can accept a 12kW or 10kW bulb and features a spherical specular aluminum reflector.
Product Details
| Manufacturer | ARRI |
|---|---|
| Model | 10/12kW Tungsten T12 Fresnel |
| Dimensions (mm)(in) | 800 x 700 x 60031.50 x 27.56 x 23.62 |
| Operation | Manual |
| Type | Fresnel |
| Power Draw (W) | 12000 |
| Supply Connector | 1 x 63A Ceeform In |
| Lux @ 3M (3200K) | 209566 (Spot) / 35891 (Flood) |
| Beam Angle Min (°) | 13 |
| Beam Angle Max (°) | 55 |
| High Speed Capability | Yes |
| Protection Rating | IP20 |
| Mounting | 28mm Spigot |
| Panalux SKU | IA3SCA0 |
| Part Number | L0.82120.B |
| Weight (kg)(lbs) | 34.00 74.96 |
